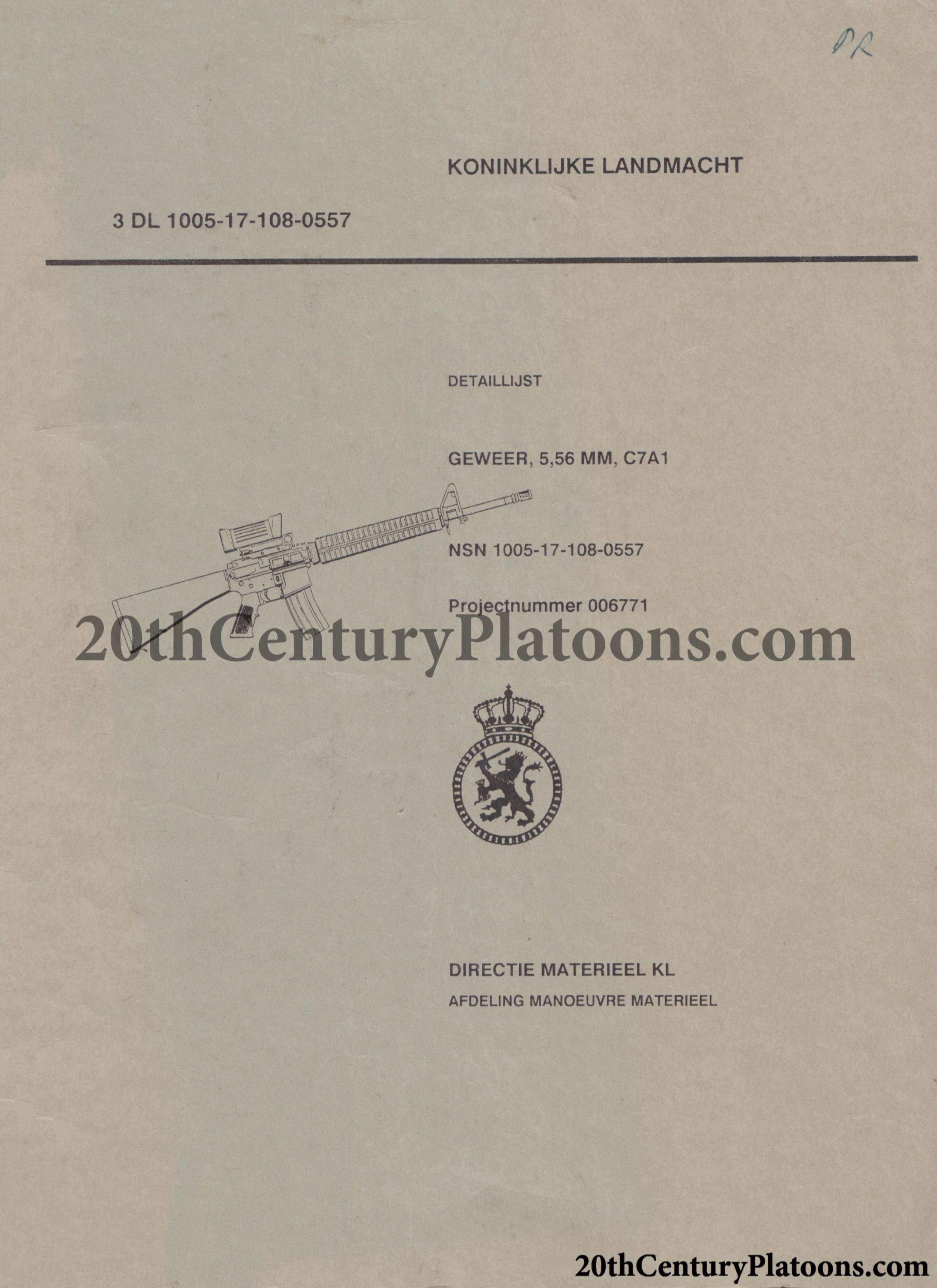

C7A1 Parts List, 1995


Today's post further explores the Diemaco down to its details, with the detaillijst showing us all parts down the 3rd echelon.
The Diemaco family of weapons has previously been discussed here as follows:

Adopted in 1995, the Geweer, 5,56MM, C7 and C7A1 replaced the FN FAL and M61 Uzi, and to a lesser extent the M1 Garand and M1 Carbine in use with territorial and reservist units. The C8 carbine and C7 LSW (termed LOAW) replaced select FN Browning High-Power pistols, M1 carbines and M61 Uzis, and the FN FALO respectively.

The initial contract called for a total of 52,285 weapons to delivered, with the Army receiving 39,500 C7s, the Airforce and Royal Marechaussee receiving 7,500 C8 carbines, and the Navy receiving 4,750 C7A1s and 535 LOAWs respectively, the latter for the Korps Mariniers. This leaves out the C8A1 and C8A1GD (Geluidsdemper), which appear to be later modifications of the C8.

It was, however, not to be so. As the Army (and other services) downsized following the Cold War's end, the number of rifles required was adjusted accordingly.

Even more so, the Army's initial plan of only adopting the iron-sighted C7 was quickly thrown out the window, with additional C7A1s being procured. The choice of foregoing the scoped C7A1 was driven by the initial requirement for a rifle capable out to 300 metres, as opposed to the Navy's (Korps Mariniers) requirement of 500 metres. In the end, the Army procured C7 for its non-combat troops, issuing the C7A1 to airmobile and mechanized infantry.
This also explains the chapter dedicated to the bayonet in the C7A1 manual, which is absent from the C7 manual.

In the future, the various posts on the Diemaco family of weapons will be combined into a single, long-form post, including various editions of the field manuals (VS 7-508 1995; 1996; 2003;2007).

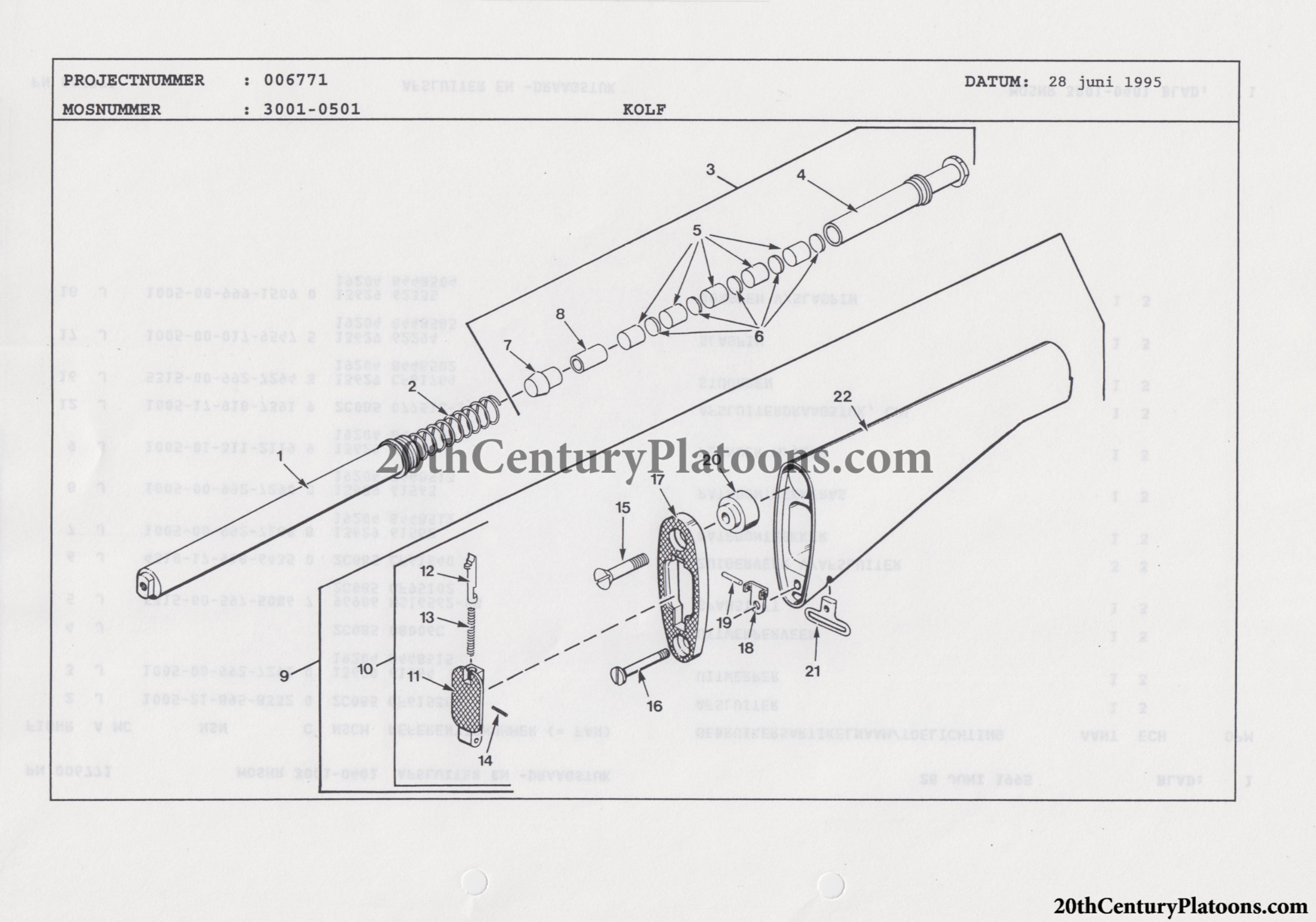

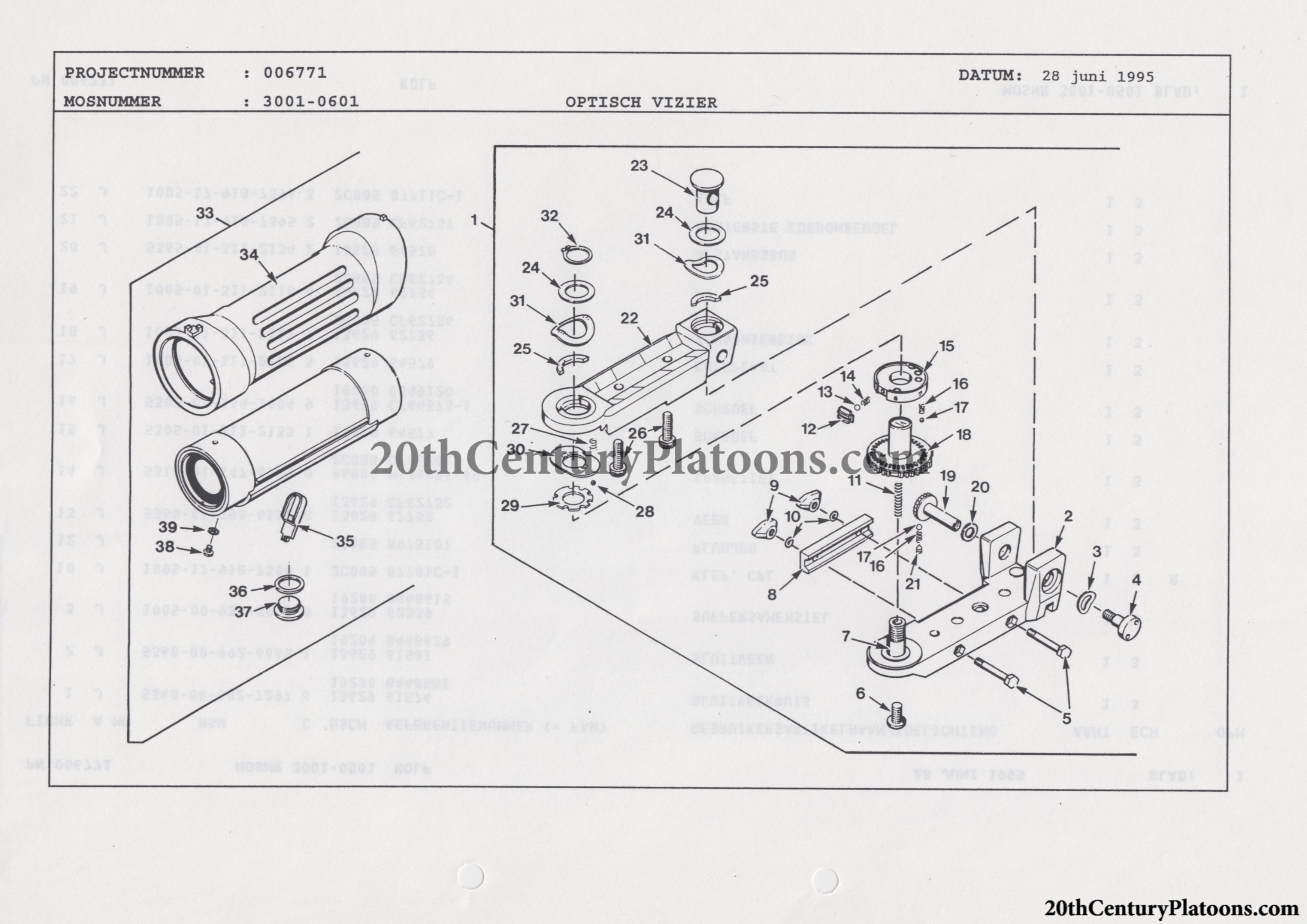

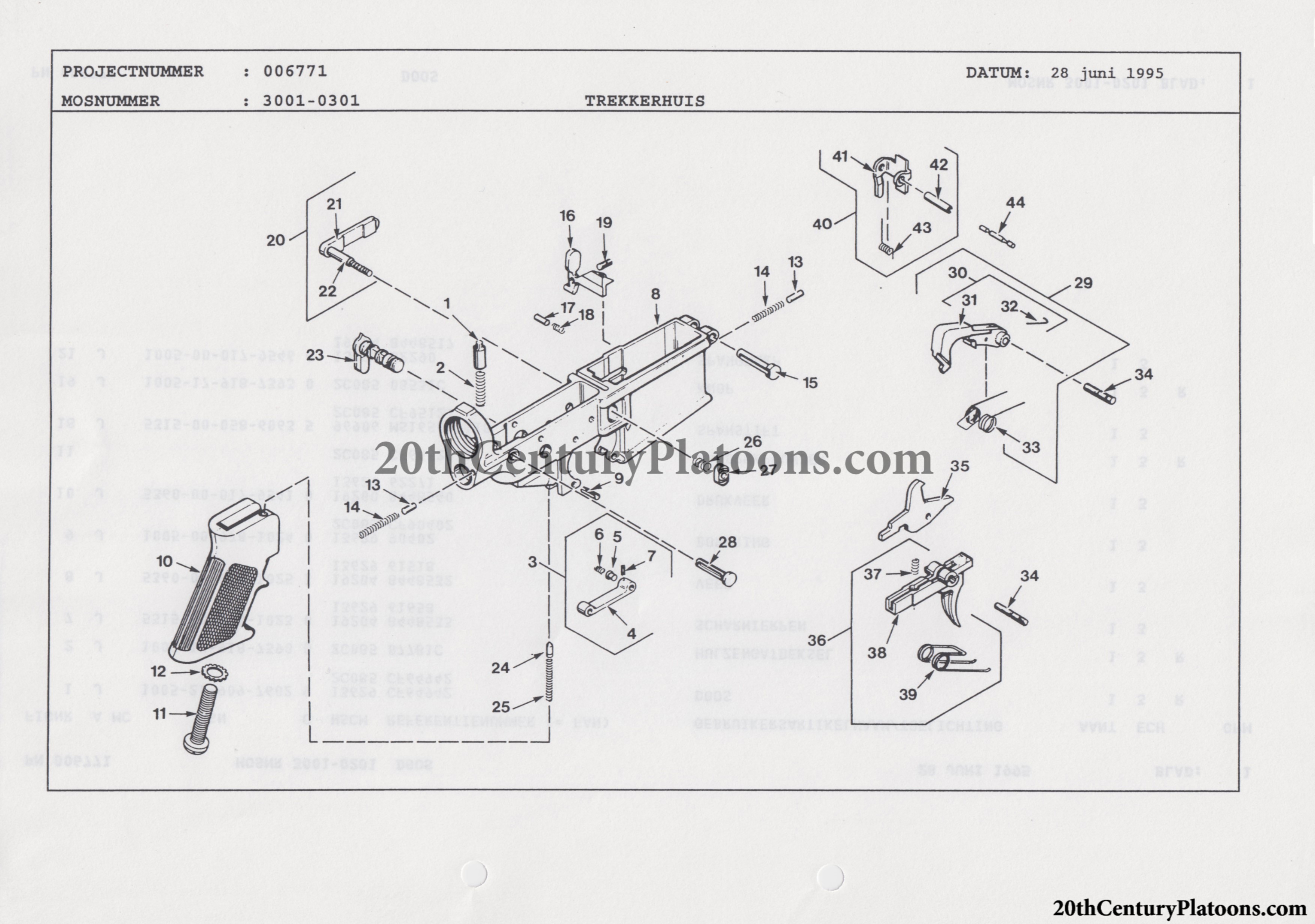

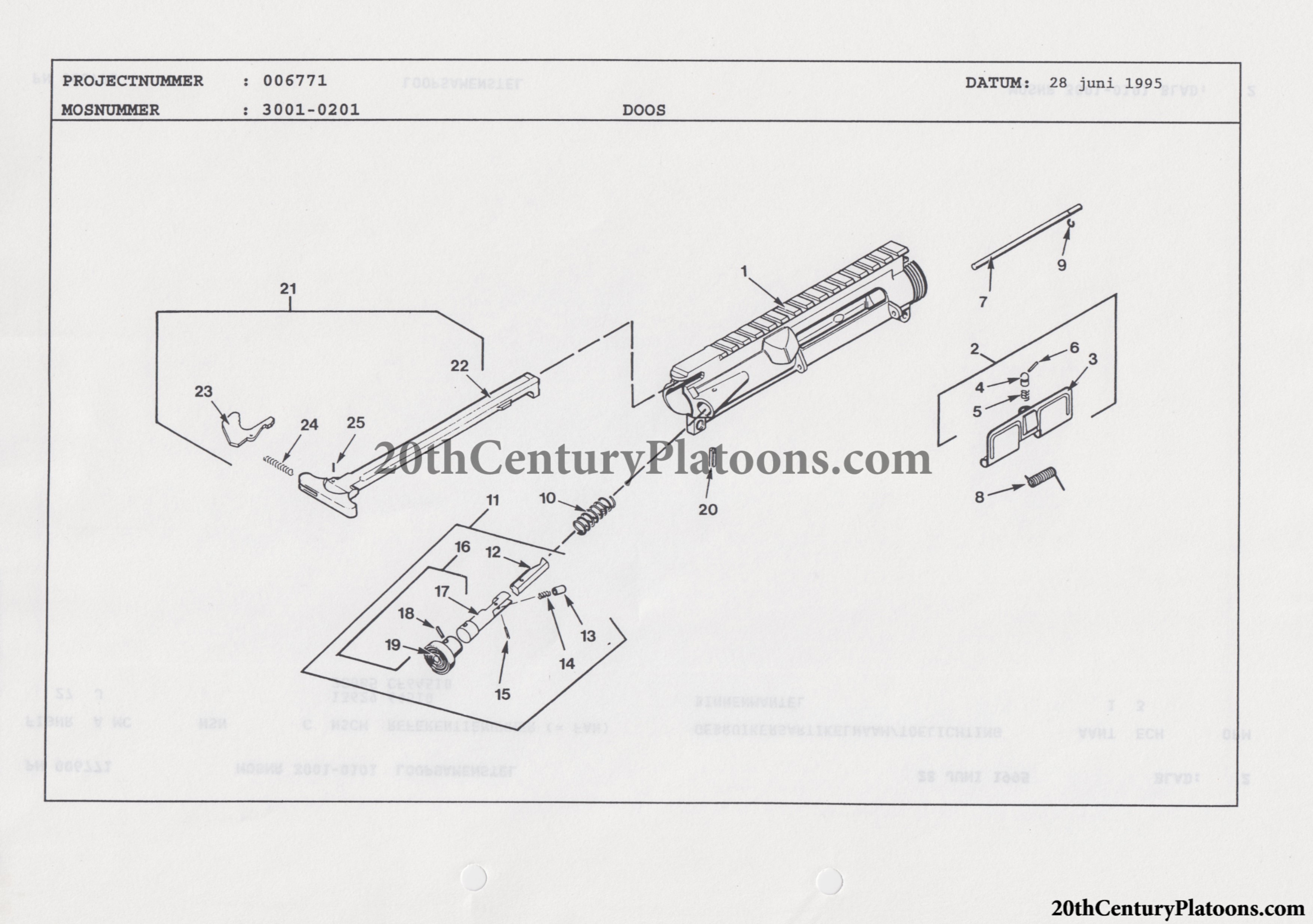

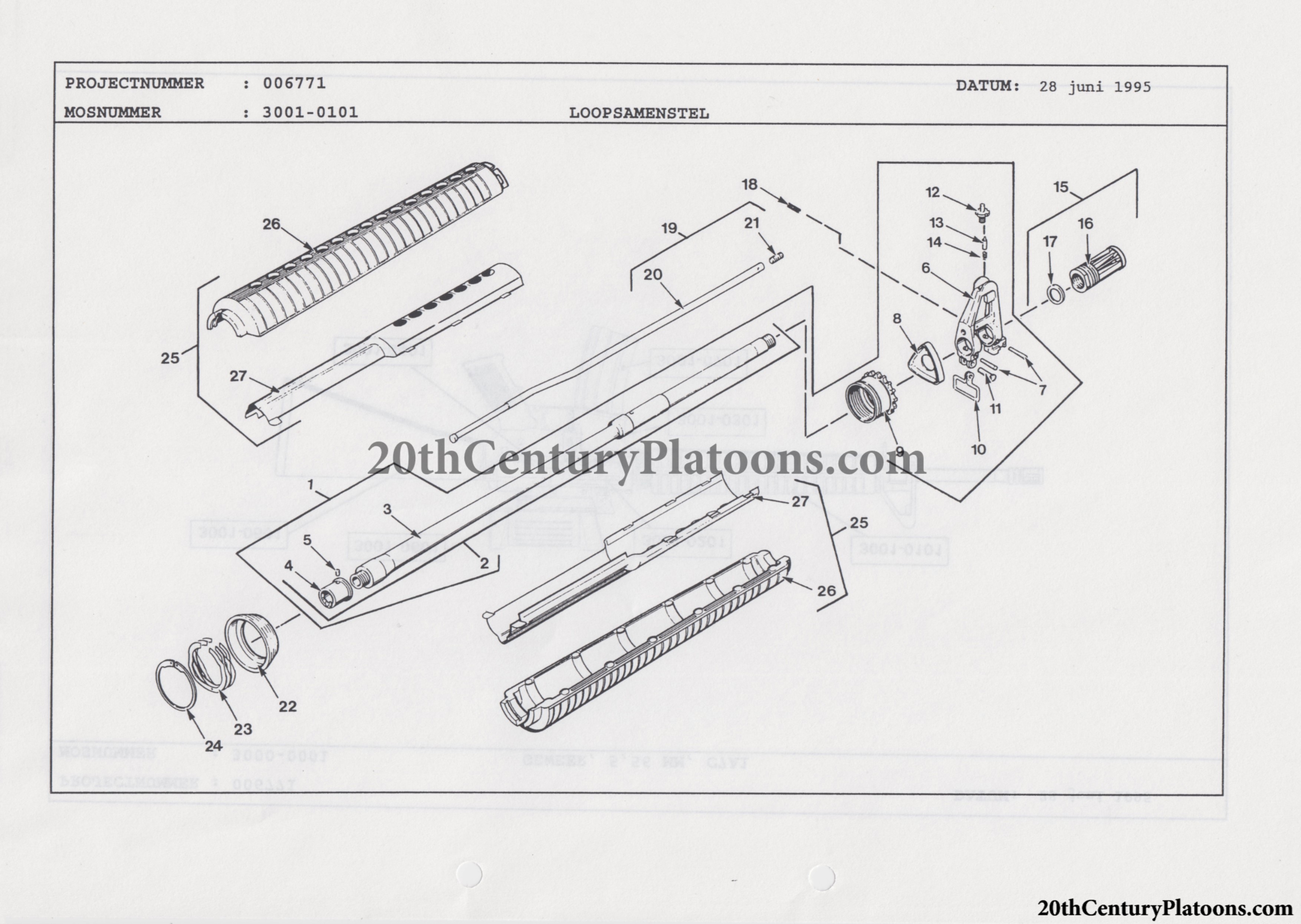

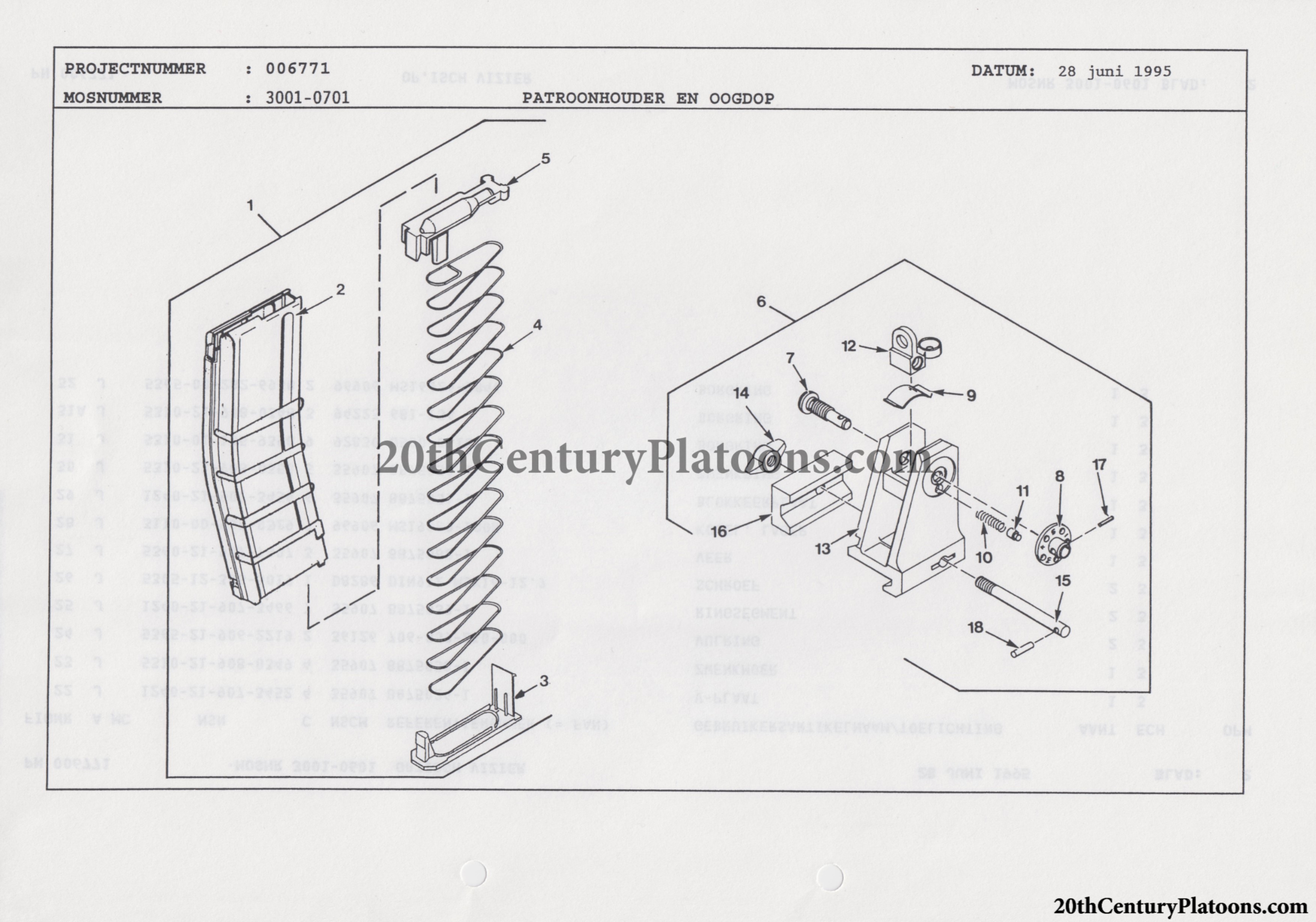

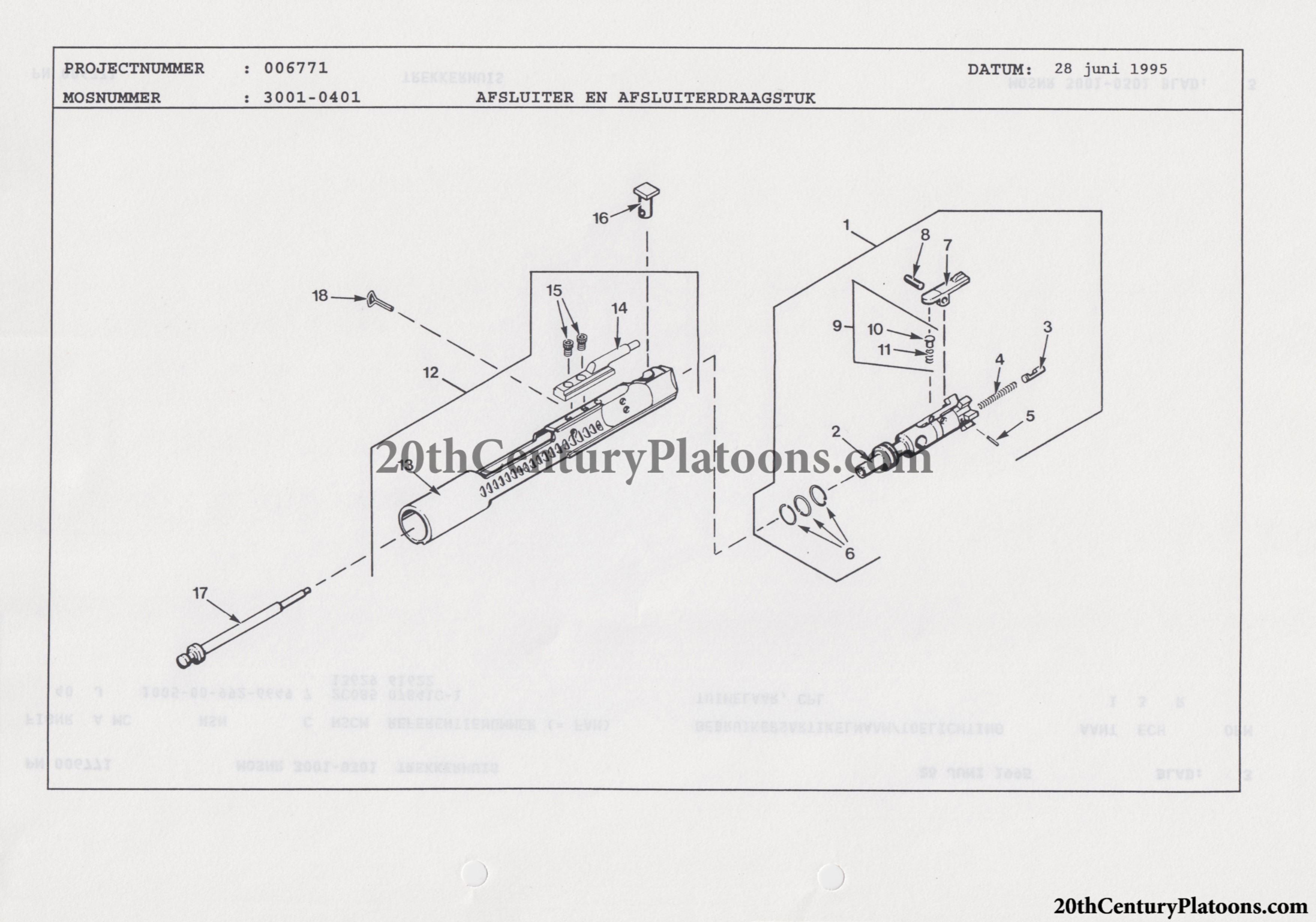

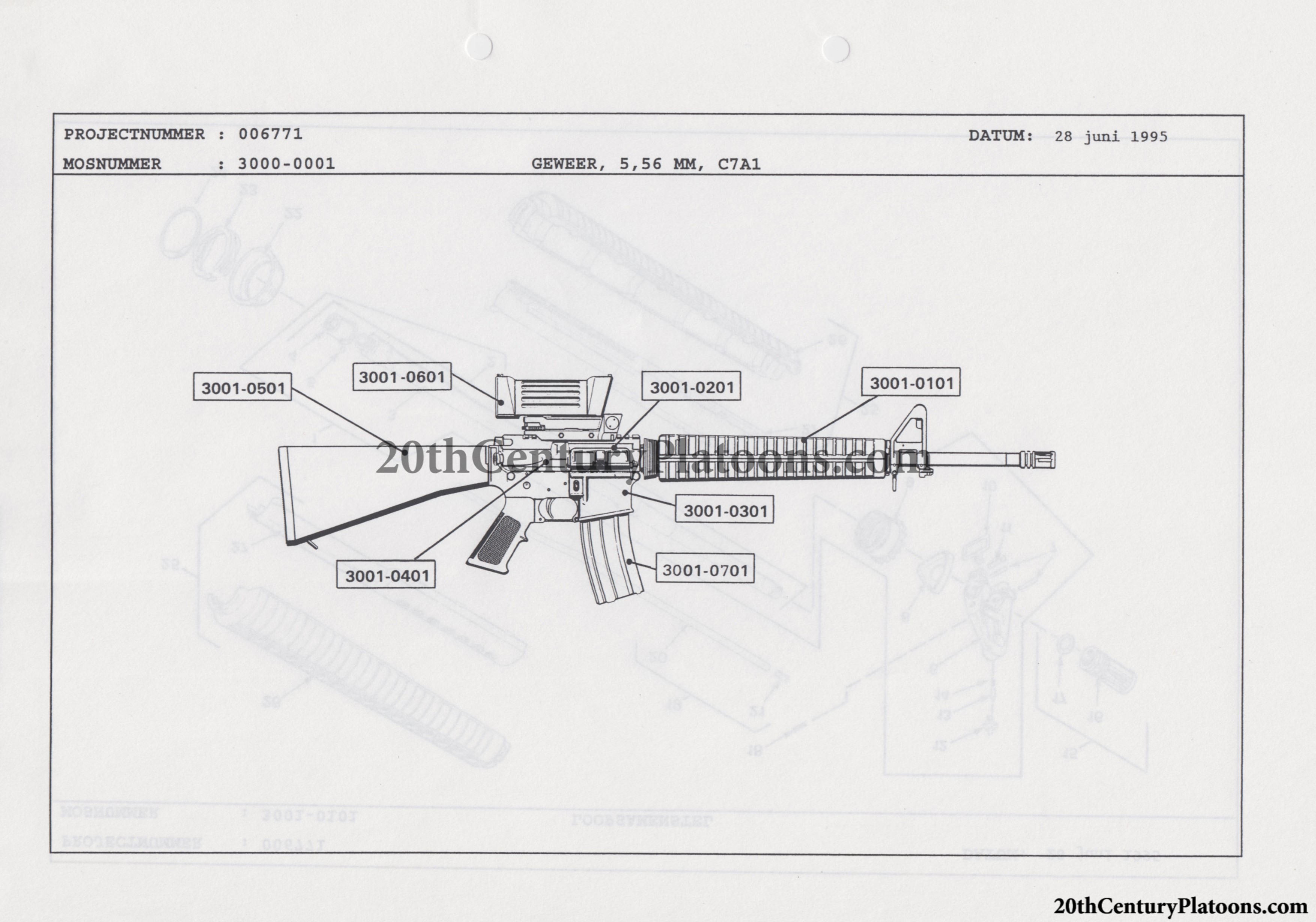

The full manual can be downloaded here, with the individual pages showing the drawings available below.

The archive of manuals can be found here.
